AUTO-STRONG PRODUCTS Soft Jaws & Hard Jaws

AUTO-STRONG PRODUCTS Soft Jaws & Hard Jaws

ADAPTER

Mounting adapter on short taper spindle noses DIN55026

Click on product image magnification

Download

Online inquiry

Products in detail

Suitable for the short taper spindle nose DIN55026

Unti : mm

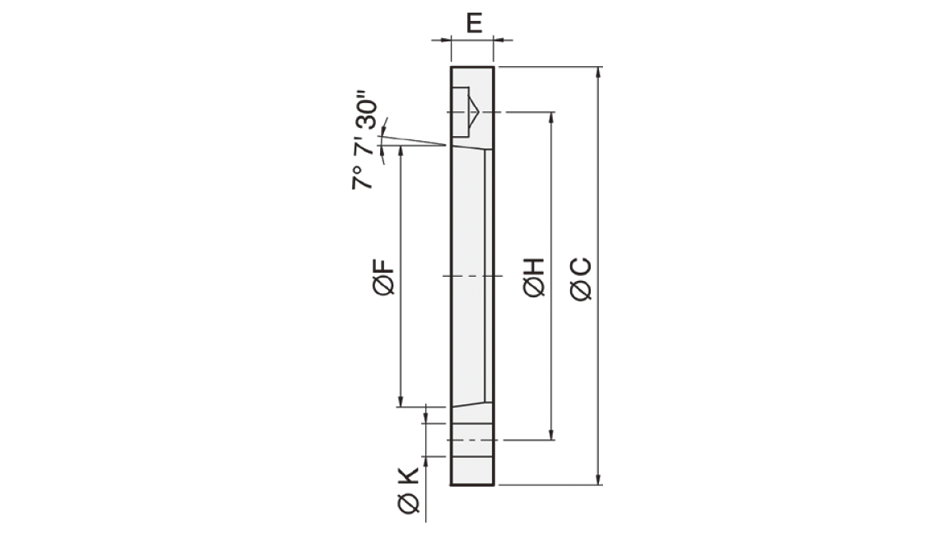

Model/size Spindle nose type C F H K E For chucks
N0205-0J4 A4 110 63.513 82.55 3-11 15 N-205
N0205-0J42 A4 110 63.513 82.55 4-11 15 NT-205
N0206-0J5 A5 140 82.563 104.78 6-11 15 N-206, NB-306, V-206
N0206-0J52 A5 140 82.563 104.78 6-11
 15 NT-206, VT-206
N0206-0J54 A5 140 82.563 104.78 4-11 15 NIT-206
N0208-0J6 A6 170 106.375 133.35 6-13 17 N-208, NB-208, V-208
N0208-0J62 A6 170 106.375 133.35 6-13 17 NT-208, VT-208
N0208-0J64 A6 170 106.375 133.35 4-13 17 NIT-208
NHT0208-0J6 A6 170 106.375 133.35 6-13 17 NHT-208
N0210-0J8 A8 220 139.719 171.45 6-17 18 N-210, N-212, NB-210, V-210, V-212
N0210-0J82 A8 220 139.719 171.45 6-17 18 NT-210, NT-212, VT-210, VT-212
N0210-0J84 A8 220 139.719 171.45 4-17 18 NIT-210, NIT-212, VIT-212
N0215-0J11 A11 300 196.869 235 6-21 22 N-215, N-218, NB-212, V-215, V-218
N0215-0J112 A11 300 196.869 235 6-21 22 NT-215, VT-215
N0215-0J114 A11 300 196.869 235 4-21 22 NIT-215, VIT-218
V0224-0J15 A15 380 285.775 330.2 6-25 27

N-220, V-221, V-224,

V-232, NB-215, NB-218

V0224-0J154 A15 380 285.775 330.2 8-25 27 VIT-224, VIT-232
N0224-0J20 A20 520 412.775 463.6 6-25

N-224, N-232,

V-240, V-250


Unit : mm

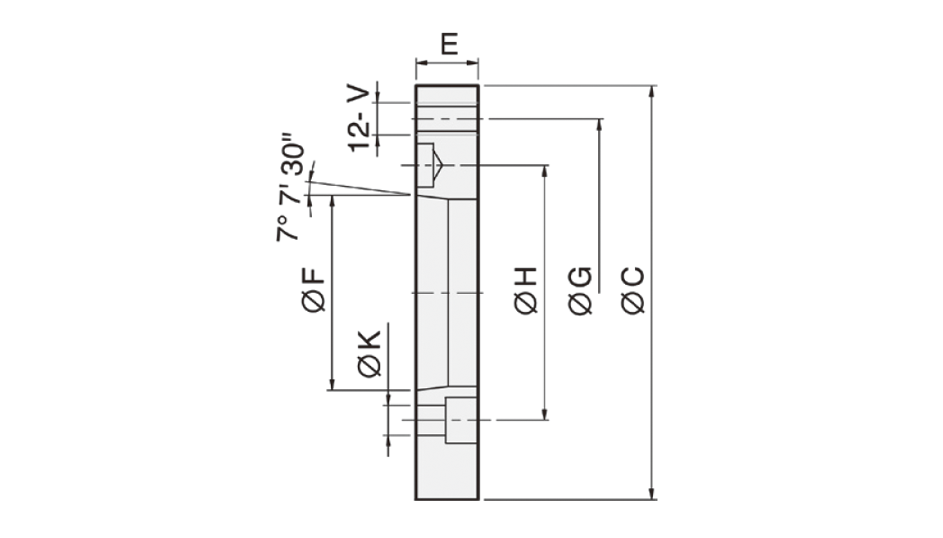

Model/ Size Spindle nose type C F H K G V E For chucks
N0206-0J4 A4 140 63.513 82.55 11 104.78 M10 20 N-206, NT-206, NIT-206,
N0206-0J4 A4 140 63.513 82.55 11 104.78 M10 20 NB-306, V-206, VT-206
N0208-0J5 A5 170 82.563 104.78 11 133.35 M12 23 N-208, NT-208, NIT-208,
N0208-0J5 A5 170 82.563 104.78 11 133.35 M12 23 NHT-208 ,NB-208, V-208,
N0208-0J5 A5 170 82.563 104.78 11 133.35 M12 23 VY-208
N0210-0J6 A6 220 106.375 133.35 13 171.45 M16 25 N-210, NT-210, NIT-210,
N0210-0J6 A6 220 106.375 133.35 13 171.45 M16 25 N-212, NT-212, NIT-212,
N0210-0J6 A6 220 106.375 133.35 13 171.45 M16 25 V-210, VT-210, V-212,
N0210-0J6 A6 220 106.375 133.35 13 171.45 M16 25 VT-212, VIT-212
N0215-0J8 A8 300 139.719 171.45 17 235 M20 33 N-215, NT-215, NIT-215,
N0215-0J8 A8 300 139.719 171.45 17 235 M20 33 N-218, NB-212, V-215,
N0215-0J8 A8 300 139.719 171.45 17 235 M20 33 VT-215, V-218, VIT-218
N0220-0J11 A11 380 196.869 235 21 330.2 M24 41 N-220, VIT-232, NB-215,
N0220-0J11 A11 380 196.869 235 21 330.2 M24 41 NB-218
N0224-0J11 A11 520 196.869 235 21 463.6 M24 45 N-224, N-232, V-240, V-250
N0224-0J15 A15 520 285.775 330.2 25 463.6 M24 42 N-224, N-232, V-240, V-250
V0224-0J8 A8 380 139.719 171.45 17 330.2 M24 33 V-221, V-224, V-232
V0224-0J11 A11 380 196.869 235 21 330.2 M24 27 V-221, V-224, V-232
V0263-0J20 A20 720 412.775 463.6 27 647.6 M30 50 VIT-263, VE-263, VE-279



Unit: mm

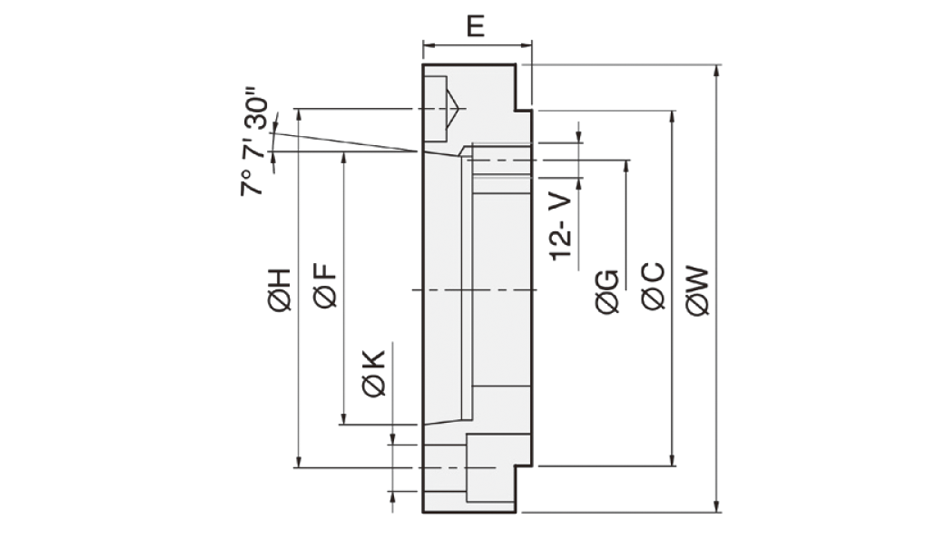

Model / Size Spindle nose type C F H K G V W E For chucks
N0205-0J5 A5 110 82.563 104.78 11 82.55 M10 128 32 N-205, NT-205
N0206-0J6 A6 140 106.375 133.35 13 104.78 M10 168 35

N-206, NT-206,

NB-306,

N0206-0J7 A7 140 106.375 133.35 13 104.78 M11 168 35 V-206, VT-206
N0208-0J8 A8 170 139.719 171.45 17 133.35 M12 208 40

N-208, NT-208,

NIT-208,

N0208-0J9 A9 170 139.719 171.45 17 133.35 M13 208 40

NB-208, V-208,

VT-208

N0212-0J11 A11 220 196.869 235 21 171.45 M16 278 50

N-210, NT-210,

NIT-210,

N0212-0J12 A12 220 196.869 235 21 171.45 M17 278 50

N-212, NT-212,

NIT-212,

N0212-0J13 A13 220 196.869 235 21 171.45 M18 278 50

NB-210, V-210,

VT-210,

N0212-0J14 A14 220 196.869 235 21 171.45 M19 278 50

V-212, VT-212,

VIT-212

N0215-0J15 A15 300 285.775 330.2 25 235 M20 378 57

N-215, NT-215,

NIT-215,

N0215-0J16 A16 300 285.775 330.2 25 235 M21 378 57

N-218, NB-212,

V-215,

N0215-0J17 A17 300 285.775 330.2 25 235 M22 378 57

VT-215, V-218,

VIT-218

V0224-0J20 A20 380 412.775 463.6 26 330.2 M24 520 58

N-220, V-221,

V-224,

V0224-0J21 A21 380 412.775 463.6 26 330.2 M25 520 58 V-232
