BE series offers more parts held&larger size parts held
-compared to the “B”series
High Capacity High Flexibility
Two way clamping
Material 100% tool steel
Heat treated HRC 55° & ground
Clamping force:
SVF-50 : 1000 kgf
SVF-72 : 2000 kgf
SVF-100 : 3000 kgf
|
MODEL NO.
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
I
|
J
|
K
|
L
|
M
|
N
|
O
|
P
|
Q
|
R
|
S
|
kg
|
|
SVF-BE-5030-80
|
300
|
50
|
30
|
80
|
30
|
36
|
14
|
75
|
24.8
|
50
|
10
|
12
|
12.5
|
70
|
0.50
|
160
|
1.5
|
12
|
36
|
6.0
|
|
SVF-BE-5030-100
|
300
|
50
|
50
|
100
|
30
|
36
|
14
|
75
|
24.8
|
50
|
10
|
12
|
12.5
|
100
|
0.50
|
100
|
1.5
|
12
|
36
|
6.0
|
|
SVF-BE-5040-80
|
400
|
50
|
40
|
80
|
30
|
36
|
14
|
75
|
24.8
|
50
|
10
|
12
|
12.5
|
80
|
0.50
|
240
|
1.5
|
12
|
36
|
7.5
|
|
SVF-BE-5040-100
|
400
|
50
|
50
|
100
|
30
|
36
|
14
|
75
|
24.8
|
50
|
10
|
12
|
12.5
|
100
|
0.50
|
200
|
1.5
|
12
|
36
|
7.5
|
|
SVF-BE-5050-80
|
500
|
50
|
50
|
80
|
30
|
36
|
14
|
75
|
24.8
|
50
|
10
|
12
|
12.5
|
90
|
0.50
|
320
|
1.5
|
12
|
36
|
9.0
|
|
SVF-BE-5050-100
|
500
|
50
|
50
|
100
|
30
|
36
|
14
|
75
|
24.8
|
50
|
10
|
12
|
12.5
|
100
|
0.50
|
300
|
1.5
|
12
|
36
|
9.0
|
|
SVF-BE-5060-80
|
600
|
50
|
60
|
80
|
30
|
36
|
14
|
75
|
24.8
|
50
|
10
|
12
|
12.5
|
100
|
0.50
|
400
|
1.5
|
12
|
36
|
10.2
|
|
SVF-BE-5060-100
|
600
|
50
|
50
|
100
|
30
|
36
|
14
|
75
|
24.8
|
50
|
10
|
12
|
12.5
|
100
|
0.50
|
400
|
1.5
|
12
|
36
|
10.2
|
|
SVF-BE-5070-80
|
700
|
50
|
70
|
80
|
30
|
36
|
14
|
75
|
24.8
|
50
|
10
|
12
|
12.5
|
110
|
0.50
|
480
|
1.5
|
12
|
36
|
11.5
|
|
SVF-BE-5070-100
|
700
|
50
|
50
|
100
|
30
|
36
|
14
|
75
|
24.8
|
50
|
10
|
12
|
12.5
|
100
|
0.50
|
500
|
1.5
|
12
|
36
|
11.5
|
|
SVF-BE-7240-100
|
400
|
72
|
50
|
100
|
40
|
48
|
18
|
112
|
39.7
|
72
|
14
|
16
|
21.3
|
100
|
0.70
|
200
|
2.0
|
16
|
52
|
18.0
|
|
SVF-BE-7250-100
|
500
|
72
|
50
|
100
|
40
|
48
|
18
|
112
|
39.7
|
72
|
14
|
16
|
21.3
|
100
|
0.70
|
300
|
2.0
|
16
|
52
|
21.0
|
|
SVF-BE-7260-100
|
600
|
72
|
50
|
100
|
40
|
48
|
18
|
112
|
39.7
|
72
|
14
|
16
|
21.3
|
100
|
0.70
|
400
|
2.0
|
16
|
52
|
24.0
|
|
SVF-BE-7270-100
|
700
|
72
|
50
|
100
|
40
|
48
|
18
|
112
|
39.7
|
72
|
14
|
16
|
21.3
|
100
|
0.70
|
500
|
2.0
|
16
|
52
|
26.0
|
|
SVF-BE-10040-100*
|
400
|
100
|
50
|
100
|
44
|
48
|
18
|
115
|
43.1
|
72
|
14
|
16
|
22.2
|
100
|
0.85
|
200
|
2.5
|
16
|
65
|
27.0
|
|
SVF-BE-10050-100
|
500
|
100
|
50
|
100
|
44
|
48
|
18
|
115
|
43.1
|
72
|
14
|
16
|
22.2
|
100
|
0.85
|
300
|
2.5
|
16
|
65
|
31.0
|
|
SVF-BE-10060-100
|
600
|
100
|
50
|
100
|
44
|
48
|
18
|
115
|
43.1
|
72
|
14
|
16
|
22.2
|
100
|
0.85
|
400
|
2.5
|
16
|
65
|
35.0
|
|
SVF-BE-10070-100
|
700
|
100
|
50
|
100
|
44
|
48
|
18
|
115
|
43.1
|
72
|
14
|
16
|
22.2
|
100
|
0.85
|
500
|
2.5
|
16
|
65
|
39.0
|
(SVF vises listed above come equipped to clam 1-4 parts, if additional part clamping is required please order optional accessories as listed on parts pages)
[*]these units will only hold up to 3 parts.

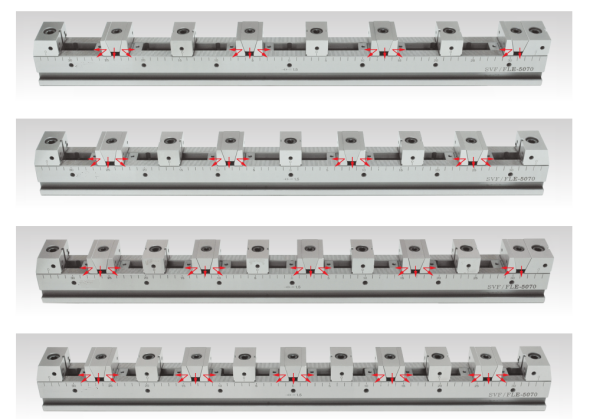

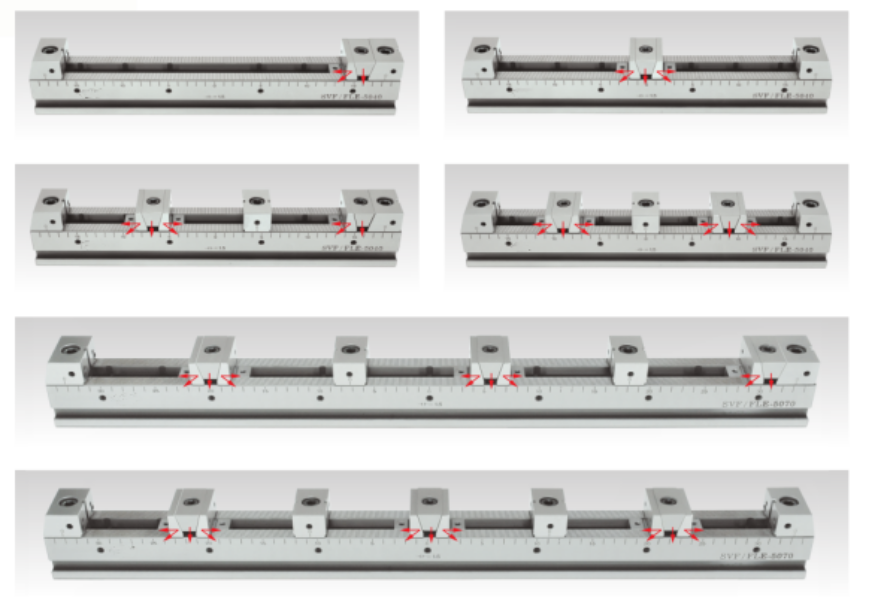

Forcing direction
Maximum width of the workpieces which can be clamped
|
MODEL NO.
|
1 PCS
|
2 PCS
|
3 PCS
|
4 PCS
|
5 PCS
|
|
SVF-BE-5030
|
203
|
96
|
45
|
31
|
14
|
|
SVF-BE-5040
|
303
|
146
|
79
|
56
|
34
|
|
SVF-BE-5050
|
403
|
196
|
112
|
81
|
54
|
|
SVF-BE-5060
|
503
|
246
|
145
|
106
|
74
|
|
SVF-BE-5070
|
603
|
296
|
179
|
131
|
94
|
|
SVF-BE-7240
|
269
|
126
|
59
|
40
|
17
|
|
SVF-BE-7250
|
369
|
176
|
92
|
65
|
37
|
|
SVF-BE-7260
|
469
|
226
|
125
|
90
|
57
|
|
SVF-BE-7270
|
569
|
276
|
159
|
115
|
77
|
|
SVF-BE-10040
|
258
|
119
|
49
|
32
|
--
|
|
SVF-BE-10050
|
358
|
169
|
83
|
57
|
28
|
|
SVF-BE-10060
|
458
|
219
|
116
|
82
|
48
|
|
SVF-BE-10070
|
558
|
269
|
149
|
107
|
68
|
|
MODEL NO.
|
6 PCS
|
7 PCS
|
8 PCS
|
9 PCS
|
|
SVF-BE-5030
|
--
|
--
|
--
|
--
|
|
SVF-BE-5040
|
26
|
15
|
--
|
--
|
|
SVF-BE-5050
|
43
|
29
|
24
|
15
|
|
SVF-BE-5060
|
60
|
43
|
36
|
26
|
|
SVF-BE-5070
|
76
|
58
|
49
|
37
|
|
SVF-BE-7240
|
--
|
--
|
--
|
--
|
|
SVF-BE-7250
|
28
|
--
|
--
|
--
|
|
SVF-BE-7260
|
44
|
27
|
22
|
--
|
|
SVF-BE-7270
|
61
|
41
|
34
|
22
|
|
SVF-BE-10040
|
--
|
--
|
--
|
--
|
|
SVF-BE-10050
|
19
|
--
|
--
|
--
|
|
SVF-BE-10060
|
36
|
18
|
--
|
--
|
|
SVF-BE-10070
|
53
|
32
|
26
|
--
|
|
MODEL NO.
|
10 PCS
|
11 PCS
|
12 PCS
|
13 PCS
|
|
SVF-BE-5030
|
--
|
--
|
--
|
--
|
|
SVF-BE-5040
|
--
|
--
|
--
|
--
|
|
SVF-BE-5050
|
--
|
--
|
--
|
--
|
|
SVF-BE-5060
|
22
|
15
|
--
|
--
|
|
SVF-BE-5070
|
32
|
24
|
21
|
16
|
|
SVF-BE-7240
|
--
|
--
|
--
|
--
|
|
SVF-BE-7250
|
--
|
--
|
--
|
--
|
|
SVF-BE-7260
|
--
|
--
|
--
|
--
|
|
SVF-BE-7270
|
18
|
--
|
--
|
--
|
|
SVF-BE-10040
|
--
|
--
|
--
|
--
|
|
SVF-BE-10050
|
--
|
--
|
--
|
--
|
|
SVF-BE-10060
|
--
|
--
|
--
|
--
|
|
SVF-BE-10070
|
--
|
--
|
--
|
--
|
