Brand:OMATEI
Where used:
1, it’s applicable for NTH SK-series manual chucks
2, Non standard spec. can be made
Advantage
1, As the standard soft jaws, the material is high quality 45# steel, stronger and
hardenable.
2, The mounting surface is ground precisely and it can match the master jaws tightly with lower
abrasion.
UNIT: mm
|

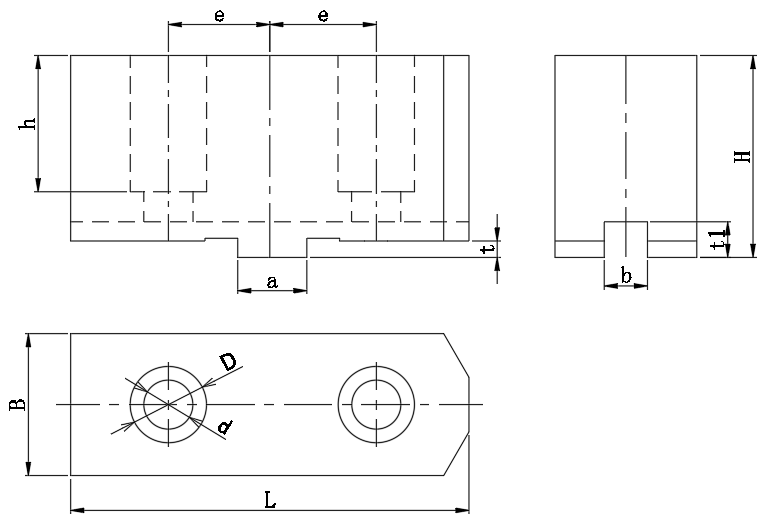

MODEL/SPEC
|
L
|
B
|
H
|
h
|
D
|
d
|
a
|
e
|
b
|
t
|
t1
|
G
|
|
NCP-04
|
52
|
19
|
30
|
21
|
11
|
6.5
|
9.53
|
12
|
7.94
|
2.5
|
5.5
|
M6*1.0P
|
|
NCP-05
|
62
|
24
|
35
|
24
|
14
|
9
|
12.68
|
16
|
7.94
|
3
|
7.2
|
M8*1.25P
|
|
NCP-06
|
73
|
26
|
37
|
25
|
17
|
11
|
12.68
|
19.05
|
7.94
|
3
|
7.2
|
M10*1.5P
|
|
NCP-07
|
95
|
31
|
48
|
34
|
17
|
11
|
12.68
|
22.2
|
7.94
|
3
|
7.2
|
M10*1.5P
|
|
NCP-08
|
95
|
31
|
48
|
34
|
17
|
11
|
12.68
|
22.2
|
7.94
|
3
|
7.2
|
M10*1.5P
|
|
NCP-09
|
110
|
37
|
48
|
34
|
17
|
11
|
12.68
|
22.2
|
7.94
|
3
|
7.2
|
M10*1.5P
|
|
NCP-10
|
110
|
37
|
48
|
34
|
19
|
13
|
19.03
|
27
|
12.7
|
3
|
7.2
|
M12*1.75P
|
|
NCP-12
|
125
|
42
|
54
|
38
|
19
|
13
|
19.03
|
31.75
|
12.7
|
3
|
7.2
|
M12*1.75P
|
|
NCP-14
|
125
|
42
|
54
|
38
|
19
|
13
|
19.03
|
31.75
|
12.7
|
3
|
7.2
|
M12*1.75P
|
|
NCP-16
|
160
|
50
|
70
|
48
|
25
|
17
|
19.03
|
38.1
|
12.7
|
6
|
11.5
|
M16*2.0P
|
Subject to the technical changes.
The customized can be made.
