Brand：NTH
To prevent deformation of workpiece for gripping the end surface, suitable for thin workpiece.
The compensating mechanism of gripping that can clamp irregular surface workpieces.
It can go with the check device to inspect the clamping status.
Size unit: mm
|
Spec / Model
|
Plunger stroke
mm
|
Jaw stroke Dia.
mm
|
Max chucking Dia.
mm
|
Min chucking Dia.
mm
|
Max.D.B.Pull
KN(kgf)
|
|
2F-05
|
12
|
8
|
53
|
25
|
5.0(510)
|
|
2F-06
|
12
|
8
|
79
|
55
|
6.0(512)
|
|
2F-08
|
12
|
8
|
106
|
75
|
12.0(1224)
|
|
2F-10
|
12
|
8
|
150
|
119
|
12.0(1224)
|
|
2F-12
|
12
|
8
|
200
|
169
|
12.0(1224)
|
|
Spec /?Model
|
Max clamping force
KN(kgf)
|
Max RPM
|
Inertia
kg*m2
|
Weight
kg
|
Matched cylinders
|
Max Pressure
Mpa(kgf)
|
|
2F-05
|
4.0(408)
|
4000
|
0.015
|
9
|
S-100R/SNK-100
|
0.7(7)
|
|
2F-06
|
5.0(510)
|
4000
|
0.035
|
9.8
|
S-100R/SNK-100
|
0.8(8)
|
|
2F-08
|
11.0(1122)
|
3500
|
0.12
|
20.3
|
S-100R/SNK-100
|
1.7(17)
|
|
2F-10
|
11.0(1122)
|
3500
|
0.28
|
30.7
|
S-100R/SNK-100
|
1.7(17)
|
|
2F-12
|
11.0(1122)
|
3000
|
0.52
|
41.2
|
S-100R/SNK-100
|
1.7(17)
|
|

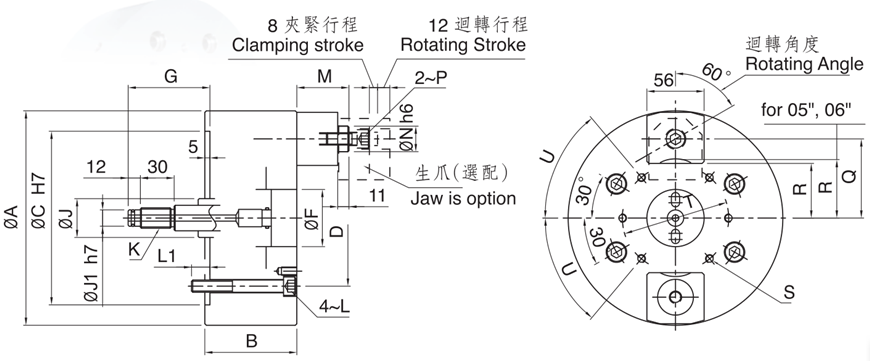

Spec / Model
|
A
|
B
|
C
|
D
|
F
|
G Max
|
G Min
|
J
|
J1
|
K
|
|
2F-05
|
135
|
86
|
110
|
82.6
|
40
|
75
|
55
|
25
|
10
|
M12×1.75
|
|
2F-06
|
165
|
86
|
140
|
104.8
|
45
|
75
|
55
|
28
|
14
|
M16×2
|
|
2F-08
|
210
|
90
|
170
|
133.4
|
56
|
80
|
60
|
38
|
16
|
M20×2.5
|
|
2F-10
|
254
|
95
|
220
|
171.4
|
56
|
75
|
55
|
38
|
16
|
M20×2.5
|
|
2F-12
|
304
|
95
|
220
|
171.4
|
56
|
75
|
55
|
38
|
16
|
M20×2.5
|
|
Spec /?Model
|
L
|
L1
|
M Max
|
M Min
|
N
|
P
|
Q
|
R
|
S
|
T
|
U
|
|
2F-05
|
M10
|
15
|
56
|
36
|
20
|
M10
|
42.5
|
27
|
4-M6
|
50
|
30°
|
|
2F-06
|
M10
|
15
|
56
|
36
|
20
|
M10
|
57.5
|
40
|
4-M8
|
64
|
50°
|
|
2F-08
|
M12
|
18
|
71
|
51
|
25
|
M12
|
77.5
|
53.5
|
6-M8
|
104
|
50°
|
|
2F-10
|
M16
|
24
|
71
|
51
|
25
|
M12
|
99.5
|
75.5
|
6-M8
|
140
|
50°
|
|
2F-12
|
M16
|
24
|
71
|
51
|
25
|
M12
|
124.5
|
100.5
|
6-M8
|
190
|
50°
|
Subject to technology changes without prior information
Non-standard requirements can be made
