Brand：NTH
Machining multiple surfaces in a single clamping
On-the-fly indexing
High accurate,durable indexing system
Index positions 4*90° or 8*45°
|

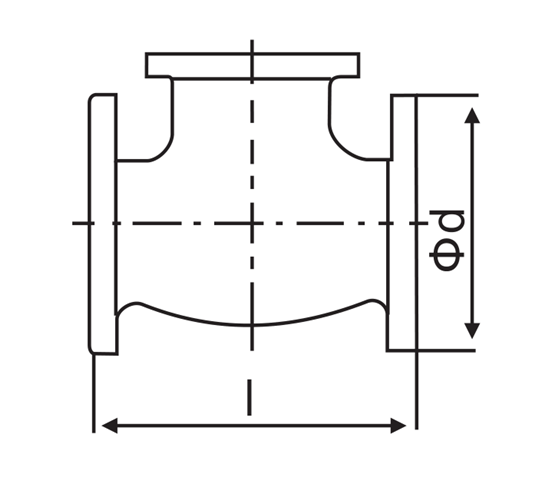

Model
|
Max.Workpiece Size
Фd( mm)
|
Max.Workpiece Size
I (mm)
|
|
IAH-225
|
60
|
100
|
|
IAH-250
|
65
|
160
|
|
IAH-275
|
80
|
220
|
|
IAH-315
|
100
|
230
|
|
IAH-350
|
135
|
240
|
|
IAH-400
|
170
|
260
|
|
IAH-500
|
220
|
310
|
|
IAH-670
|
300
|
400
|

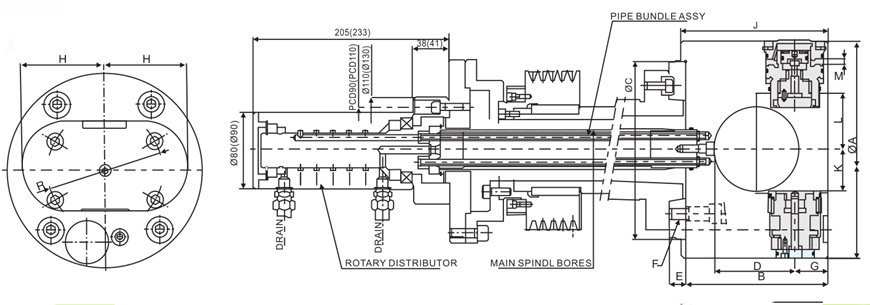

Bracketed dimensions refer to models IAH-400 and larger.
|
Spec/ Model
|
?A
|
B
|
?C(h7)
|
D
|
E
|
F
|
G
|
H
|
J
|
K
|
L
|
M
|
?R
|
|
IAH-225
|
225
|
149
|
185
|
84
|
25
|
M12
|
35
|
95
|
154
|
46
|
58
|
11.5
|
133.4
|
|
IAH-250
|
250
|
185
|
210
|
113
|
25
|
M12
|
40
|
106
|
190
|
46
|
55
|
20
|
133.4
|
|
IAH-280
|
280
|
208
|
210
|
125
|
25
|
M16
|
48
|
125
|
213
|
57
|
67
|
20.5
|
171.4
|
|
IAH-315
|
315
|
227
|
235
|
136
|
25
|
M16
|
50
|
136
|
232
|
70
|
85
|
22
|
171.4
|
|
IAH-350
|
350
|
235
|
290
|
148
|
30
|
M20
|
50
|
145
|
240
|
84
|
102
|
23
|
235
|
|
IAH-400
|
400
|
253
|
290
|
160
|
30
|
M20
|
60
|
165
|
259
|
100
|
114
|
30
|
235
|
|
IAH-500
|
500
|
301
|
380
|
200
|
35
|
M20,M24
|
68
|
205
|
308
|
133
|
157
|
35
|
235
|
|
IAH-670
|
670
|
465
|
380
|
286
|
40
|
M24
|
90
|
275
|
470
|
176
|
214
|
40
|
330.2
|
|
Spec/Model
|
Max. Clamping Force
kgf
|
Spindle Bore
mm
|
Max RPM
|
Weight
kg
|
Inertia moment
kg*m2
|
Max.Workpiece Size
S mm
|
Max.Workpiece Size
T mm
|
|
IAH-225
|
1270
|
over45
|
2800
|
29
|
0.9
|
60
|
100
|
|
IAH-250
|
1730
|
over45
|
2400
|
44
|
1.7
|
65
|
160
|
|
IAH-280
|
2550
|
over45
|
2000
|
56
|
2.8
|
80
|
220
|
|
IAH-315
|
2550
|
over45
|
1800
|
75
|
5
|
100
|
230
|
|
IAH-350
|
2550
|
over55
|
1800
|
100
|
8
|
135
|
240
|
|
IAH-400
|
3530
|
over55
|
1200
|
145
|
15
|
170
|
260
|
|
IAH-500
|
4670
|
over55
|
900
|
230
|
25.4
|
220
|
310
|
|
IAH-670
|
5890
|
over55
|
600
|
540
|
32.5
|
300
|
400
|
Subject to technology changes without prior information
Non-standard requirements can be made
