Mostly suitable for the production of parts with top concentricity.lt is foruniversal use,hawever particularly advantageous for grinding machines.indexing heads and lathes:
adjusting accuracy within 0.005mm
repeatability0.015mm
The clamped workpiece is adjusted to the required concentricity by meanof 4 or8 radially arranged adjusting screws
|

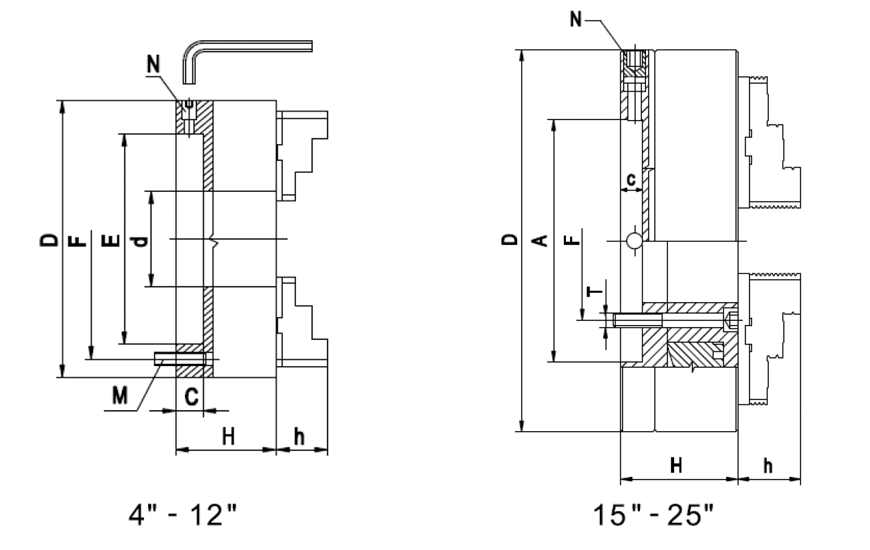

卡盤尺寸
Chuck Size
|
D
|
F
|
E
|
A
|
d
|
H
|
C
|
M/T
|
N
|
Solid Jaws
Steel body（h）
鋼制本體一體爪
|
2-Piece Jaws
Steel body（h）
鋼制本體分離爪
|
|
PS6-04
|
103
|
83
|
45
|
-
|
20
|
68
|
13
|
3-M8*1.25
|
4-M10
|
16
|
-
|
PS6-05
|
125
|
108
|
55
|
-
|
35
|
60
|
15
|
3-M8*1.25
|
4-M12
|
20
|
40
|
PS6-06
|
160
|
140
|
86
|
-
|
42
|
68
|
17
|
3-M10*1.5
|
4-M12
|
32
|
43.4
|
|
PS6-08
|
200
|
176
|
110
|
-
|
55
|
78
|
18
|
3-M10*1.5
|
4-M18
|
29
|
45
|
PS6-10
|
250
|
224
|
145
|
-
|
76
|
89
|
20
|
3-M12*1.75
|
4-M18
|
34
|
52
|
PS6-12
|
315
|
286
|
180
|
-
|
103
|
97
|
20
|
3-M16*2.0
|
4-M18
|
43
|
57
|
PS6-15
|
400
|
171.45
|
-
|
299.26
|
136
|
122
|
22
|
-
|
8-M18
|
-
|
67
|
PS6-20
|
500
|
235
|
-
|
407.2
|
190
|
144
|
30
|
-
|
8-M18
|
-
|
79
|
PS6-25
|
630
|
330
|
-
|
407.2
|
252
|
150
|
30
|
-
|
8-M18
|
-
|
87
|
PS6-31
|
800
|
368.3
|
-
|
580
|
266.7
|
158
|
30
|
-
|
8-M18
|
-
|
92.5
|
