SUPER THIN CHUCKS
1.The handle with an angle of 30 degrees is more convenient for operations.
2.The“super thin thickness”design of chucks increase the“allowable distance” of machining opertions.
3.Chuck flange makes loading and unloading operation simpler and more convenient.
4.Hard jaws and Soft jaws can be used alternatively.
Specification UNIT：mm
|
MODEL/SPEC
|
O.D.Clamping Range
mm
|
I.D.Clamping Range
mm
|
Weight
kg
|
|
NBK-06
|
?8-?160
|
?48-?150
|
10.6
|
|
NBK-08
|
?11-?200
|
?62-?190
|
18.1
|
|
NBK-10
|
?12-?250
|
?72-?240
|
27.9
|
|
NBK-12
|
?15-?300
|
?86-?290
|
42.9
|
|

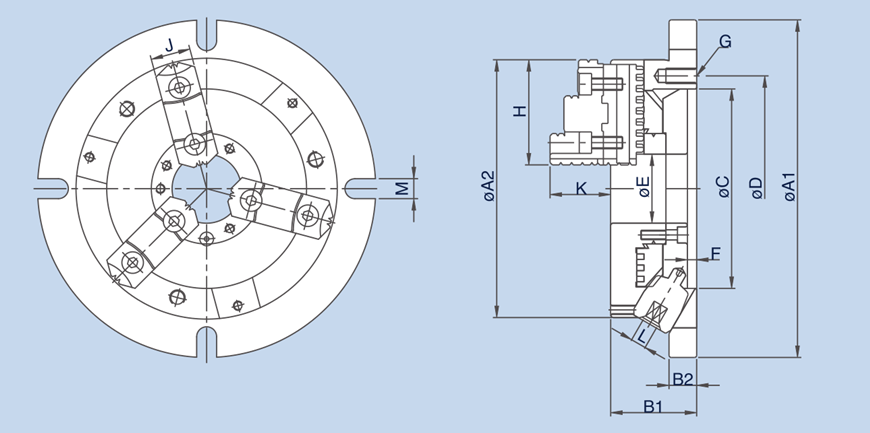

MODEL/SPEC
|
A1
|
A2
|
B1
|
B2
|
C
|
D
|
E
|
F
|
G
|
H
|
J
|
K
|
L
|
M
|
|
NBK-06
|
220
|
170
|
58
|
18
|
130
|
147
|
45
|
6
|
3-M10x1.5P
|
68
|
26
|
40
|
10
|
13
|
|
NBK-08
|
270
|
210
|
65
|
20
|
155
|
172
|
60
|
6
|
3-M10x1.5P
|
82
|
28
|
43
|
11
|
13
|
|
NBK-10
|
315
|
255
|
73
|
20
|
190
|
210
|
80
|
6
|
3-M12x1.75P
|
93
|
32
|
52
|
12
|
16
|
|
NBK-12
|
370
|
305
|
80
|
22
|
250
|
285
|
105
|
5
|
3-M12x1.75P
|
118
|
40
|
59
|
14
|
18
|
Subject to technology changes without prior information
Non-standard requirements can be made
