NTH MANUAL CHUCKS GB SERIES
K11 3-JAW SELF-CENTERING CHUCKS(2-PIECE JAW)

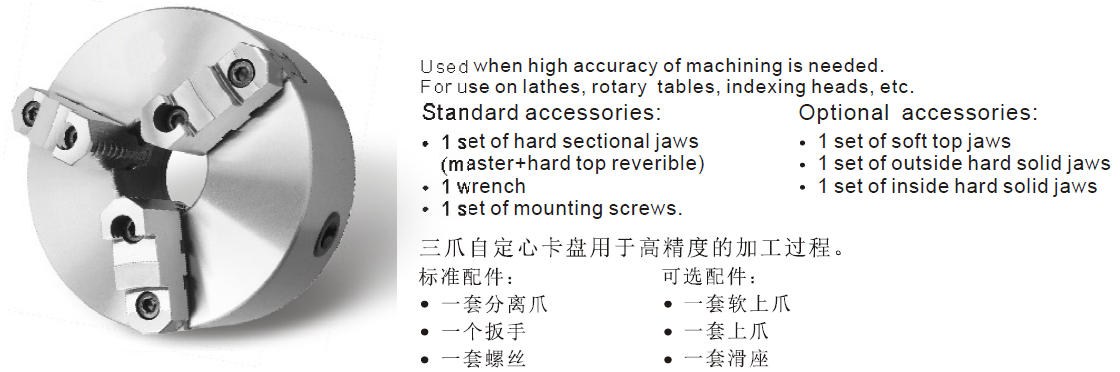

K11 SERIES 3-JAW SELF-CENTERING CHUCKS(2-PIECE JAW)
Click on product image magnification
Download
Online inquiry
Products in detail
|

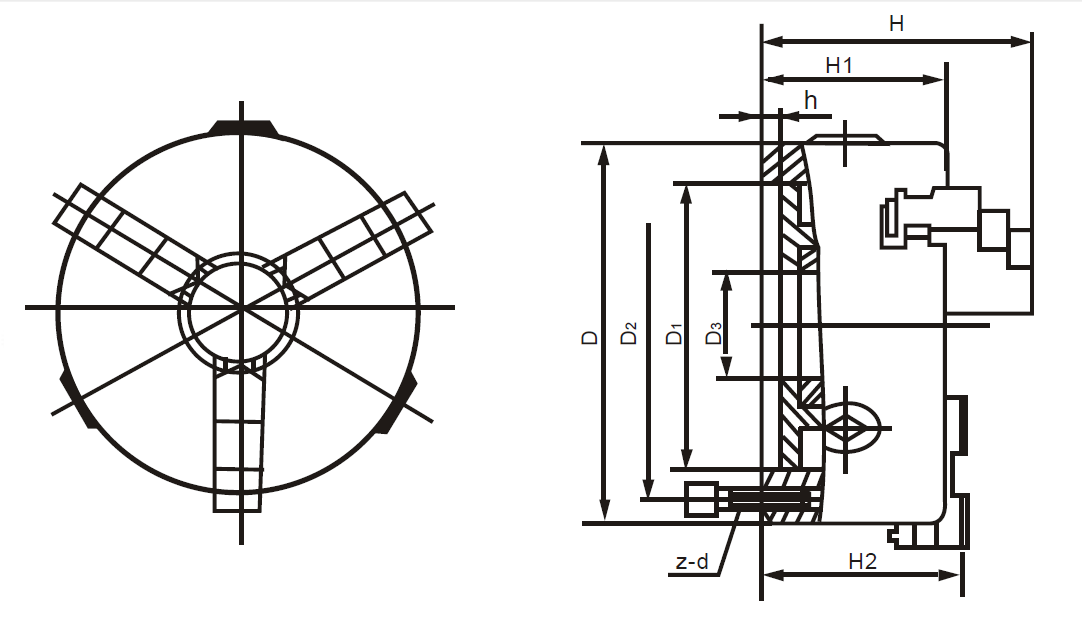

Code No
|
For
front-mouting
|
Chuck Size
|
D1
|
D2
|
D3
|
H
|
H1
|
H2
|
h
|
z-d
|
Max.input
torque
|
R.P.M
Max.speed
|
Kg
Net wt.
|
|
K11-125A
|
K11-125AF
|
125
|
95
|
108
|
30
|
95
|
58
|
63
|
4
|
3-M8
|
100
|
3000
|
4.8
|
|
K11-130A
|
K11-130AF
|
130
|
100
|
115
|
30
|
97
|
60
|
65
|
5
|
3-M8
|
100
|
3000
|
4.3
|
|
K11-160A
|
K11-160AF
|
160
|
130
|
142
|
45
|
109
|
65
|
71
|
5
|
3-M8
|
160
|
2500
|
8.3
|
|
K11-190A
|
K11-190AF
|
190
|
155
|
172
|
55
|
122
|
75
|
78
|
5
|
3-M10
|
250
|
2000
|
9.5
|
|
K11-200A
|
K11-200AF
|
200
|
165
|
180
|
65
|
122
|
75
|
78
|
5
|
3-M10
|
250
|
2000
|
13
|
|
K11-230A
|
K11-230AF
|
230
|
190
|
210
|
70
|
136
|
80
|
84
|
6
|
3-M12
|
250
|
2000
|
14.5
|
|
K11-240A
|
K11-240AF
|
240
|
195
|
215
|
70
|
136
|
80
|
84
|
8
|
3-M12
|
320
|
1600
|
22.5
|
|
K11-250A
|
K11-250AF
|
250
|
206
|
226
|
80
|
136
|
80
|
86
|
5
|
3-M12
|
320
|
1600
|
23
|
|
K11-315A
|
K11-315AF
|
315
|
260
|
285
|
100
|
156.5
|
90
|
99.5
|
6
|
3-M16
|
400
|
1200
|
41
|
|
K11-320A
|
K11-320AF
|
320
|
270
|
290
|
100
|
156.5
|
90
|
99.5
|
6
|
3-M16
|
400
|
1200
|
42
|
|
K11-325A
|
K11-325AF
|
325
|
272
|
296
|
100
|
156.5
|
90
|
99.5
|
6
|
3-M16
|
400
|
1200
|
41
|
|
K11-380A
|
K11-380AF
|
380
|
325
|
350
|
135
|
173.5
|
98
|
107.5
|
6
|
3-M16
|
500
|
1000
|
46
|
|
K11-400A
|
K11-400AF
|
400
|
340
|
368
|
130
|
173.5
|
100
|
112.5
|
6
|
3-M16
|
500
|
1000
|
62
|
|
K11-500A
|
K11-500AF
|
500
|
440
|
465
|
210
|
202
|
115
|
126
|
6
|
6-M16
|
630
|
800
|
71
|
|
K11-630A
|
K11-630AF
|
630
|
560
|
595
|
270
|
220.5
|
135
|
144.5
|
7
|
6-M16
|
800
|
800
|
200
|
