Brand：NTH
2 jaw universal scroll chuck(Front and back mounted)
1. Plain back
2. Standard accessories: 1 set two-piece hard jaws
3. High accuracy on clamping repeatability
Specification? ?UNIT:mm
|
Model/Spec
|
Max. Allowable Torque
N*m
|
Max. Gripping Force
KN
|
Weight
Kg
|
Max. Speed
RPM
|
Inertia moment
Kg*m2
|
O.D Clamping Range
mm
|
I.D. Clamping Range
mm
|
|
SKT-04*
|
44
|
12
|
3.1
|
2500
|
-
|
3-90
|
32-84
|
|
SKT-05*
|
63
|
15
|
4.4
|
2500
|
0.015
|
3-110
|
35-100
|
|
SKT-06
|
88
|
31
|
11.4
|
2000
|
0.035
|
8-160
|
55-150
|
|
SKT-07
|
107
|
31
|
12.2
|
2000
|
0.065
|
8-180
|
62-170
|
|
SKT-08
|
128
|
33
|
16.2
|
2000
|
0.075
|
8-180
|
62-170
|
|
SKT-09
|
147
|
37
|
21.2
|
2000
|
0.165
|
11-220
|
70-210
|
|
SKT-10
|
176
|
46
|
28
|
1800
|
0.265
|
12-260
|
80-250
|
|

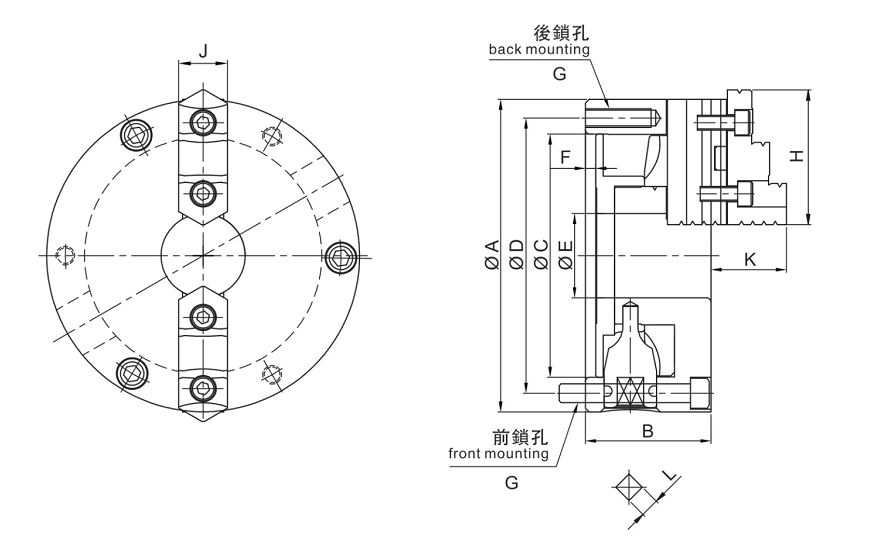

Model/Spec
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
J
|
K
|
L
|
|
SKT-04*
|
112
|
58
|
80
|
95
|
24
|
4.5
|
3(4)-M8x1.25P
|
46.5
|
19
|
31
|
8
|
|
SKT-05*
|
132
|
60
|
100
|
115
|
32
|
4.5
|
3(4)-M8x1.25P
|
56
|
22
|
36
|
8
|
|
SKT-06
|
167
|
66
|
130
|
147
|
45
|
5
|
3-M10x1.5P
|
67
|
25
|
42
|
10
|
|
SKT-07
|
193
|
76
|
155
|
172
|
58
|
5
|
3-M10x1.5P
|
80
|
30
|
46
|
11
|
|
SKT-08
|
203
|
76
|
160
|
176
|
58
|
5
|
3-M10x1.5P
|
80
|
30
|
46
|
11
|
|
SKT-09
|
233
|
84
|
190
|
210
|
70
|
5.5
|
3-M12x1.75P
|
80
|
30
|
46
|
12
|
|
SKT-10
|
273
|
86
|
230
|
250
|
89
|
5.5
|
3-M12x1.75P
|
95
|
36
|
54
|
12
|
*Note: The front mounting bolts are 4?pcs
Value-added services for the NTH high precision scroll chucks:
1, Free testing for returning back;
2, Free jaw boring to improve the accuracy
3, Repairing solution for free.
4, The customers only should pay the round freight fee.
5, if component damaged and need to be changed,just need to pay the component fee.
Subject to technology changes without prior information
?Non-standard requirements can be made
